CS / ALLOY TUBE & PIPE

CARBON STEEL / ALLOY STEEL TUBES & PIPES

Carbon steel tube and alloy steel tubues are the most common grades for Heat exchanger, Condenser and Air cooler fabrication.

Depending upon our customer's need, we provide most competitive solution with various options such as stock delivery for shutdown within 24 hours response but also in new production basis as per client's purchase order subject to required length and grades.

DUSUNG METAL
We are able to provide following material grades at competitive option:

SEAMLESS LINE PIPE & ALLOY Pipes in Stock(Korea, Japan, Eu origin) or New production(Korea, Japan)

  1. ASTM A53
  2. ASTM A106
  3. ASTM A333
  4. ASTM A335

SEAMLESS & WELDED CS TUBE & ALLOY STEEL TUBES (Korea, China)

  1. ASTM A179, A192 / A214 / A334 / A209 / A213

WELDED LINE PIPE (Korea)

  1. API 5L PSL 1 / PSL 2, GR B, X42~ X60
CARBON STEEL / ALLOY STEEL TUBES & PIPES

STANDARD & ITEM

  1. ASME SA179 / SA192 (Low Carbon heat exchanger and condenser tubes)
  2. ASME SA210 GR A1, C (Mid Carbon boiler and super heater tubes)
  3. ASME SA106 GR B / A53 GR A, B
  4. ASME SA209 T1 (Carbon-Moly-Alloy steel boiler and super heater tubes)
  5. ASME SA334 GR 1,3,6 (Carbon and alloy steel for low temperature service)
  6. ASME SA333 GR 1,3,6
  7. ASME SA335 GR P1, P2, P11, P12, P22, P23, P5, P9, P91(Ferritic alloy steel pipe for high temperature service)
  8. ASME SA213 T2, T5, T11, T12, T22, T23, T91 (Ferritic and alloy steel tube for super heaters and heat exchanger)
DUSUNG METAL
USE ASTM Remark
Carbon steel boiler and heat exchanger tubes, Heater A178-A Welded
A179
A214 Welded
A210 A1 C 0.27%, Mid C
A210C C 0.35%, Mid C
Alloy steel boiler and heat exchanger tubes A209 T1 Mo 0.44~0.65%
A213 T11 Cr 1.0~1.5%
A213 T12 Cr 0.8~1.25%
A213 T22 Cr 1.9~2.6%
A213 T5 Cr 4~6%
A213 T9 Cr 8~10%
Low temperature service A334 Gr1 Impact test
A334 GR6 Impact test

PRODUCTION RANGE

  1. Outside Diameter : 12.7~89.1mm
  2. Wall thickness : 0.8mm~15mm
  3. Length : 22 meter max

RELATED STANDARDS

  1. ASME/ASTM
  2. JIS STANDARD
  3. DIN STANDARD
  4. EN STANDARD
  5. BS STANDARD

SPECIFICATION & TESTING (ASME SA450)

  1. Mechanical property - Tensile, Yield strength, Expansion, Flattening test
  2. Chemical composition
  3. Impact test: Low temperature test
  4. NDE: 100% ECT or Hydrostatic test
  5. PWHT: Cycle, Temperature to be provided by buyer
  6. DI/VI inspection

SPECIAL REQUIREMENTS

  1. - Sulphide stress corrosion cracking(SSCC)
  2. - Hydrogen induced cracking(HIC)
  3. C,P,S content to be limited (C max 0.2%)
  4. Killed steel
  5. Normalized
  6. Hardness
  7. PWHT

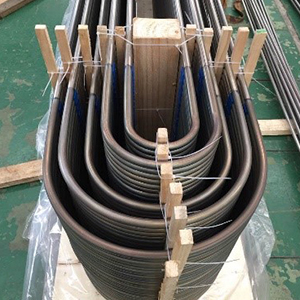

U BEND TUBES FOR SHELL & TUBE HEAT EXCHANGER

  1. Carbon steel/Alloy steel ferritic Tubes
  2. Stainless steel Tubes
  3. Copper alloy tubes
  4. High performance alloy tubes(Titanium, N04400,N08800 etc)

GENERAL INFORMATION

  1. Tube Out diameter: 15.88mm~
  2. Material: Carbon steel, Stainless steel, Copper Alloy, Nickel alloy, Alloy steel,
  3. Hot Bending: For HRSG, Boiler Industry
  4. Cold Bending: For Heat exchanger, Condenser
  5. Applied Standard:
  6. TEMA RCB-2.3 U Tubes
  7. Roundness, bending space, Wall thickness reduction
  8. Power piping ASME B31.1
  9. Post U Bend heat treatment condition
DUSUNG METAL
DUSUNG METAL
DUSUNG METAL
DUSUNG METAL

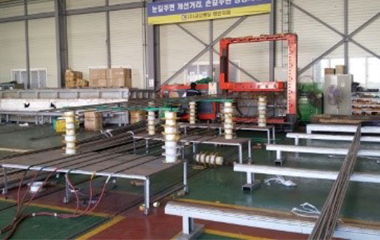

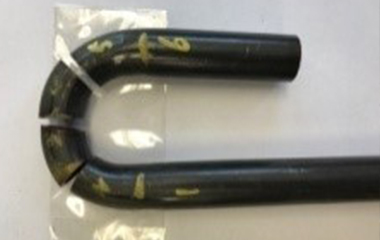

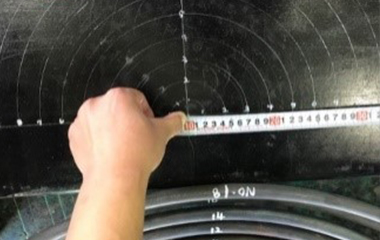

Electric resistance S/R heat treatment for stainless steel tubes &Dimension checking, Mock up test for smallest R
