COPPER ALLOY TUBE & PIPE

COPPER ALLOY TUBE & PIPE

Thanks to great corrosion resistance characteristic, the copper and copper alloy tubes are widely used where the sea water used in the application such as Power plant, Petrochemicals and Desalination plant.

We, DUSUNG METAL, provides the best solutions to meet our customers' desired delivery times and prices based on our extensive experience, and we can suggest alternatives to our customers thanks to our long-standing expertise in material selection.

The grades we provide are

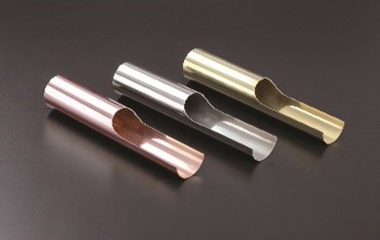

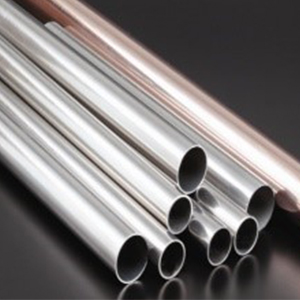

  1. Pure copper in pancake coil, straight tube for cooler and general industry (Mostly Korea, short lead time_ C12200, C11000, Brass tube etc

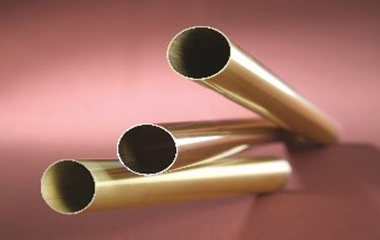

  2. Copper alloy grades (Korea, China origin mostly 4~6 weeks lead time) C44300, C68700 , C70600 , C71000, C71500, C71640
DUSUNG METAL
COPPER ALLOY TUBE & PIPE

APPLICATION

  1. Condenser, Heat Exchanger, Evaporator
  2. Saltwater piping, Distiller tubes for ship building

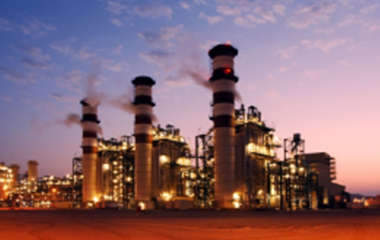

  3. Power plant, Desalination plan

PRODUCT RANGE

  1. OD: 9.53~219.1mm (Max tube: 50.8 / Pipe: 2”,4”6”8)
  2. WT: 0.7~12.7mm (Min thickness subject to OD)
  3. Length: Up to 23 meters (Especially for Desalination plant)

MATERIAL SELECTION GUIDE

DUSUNG METAL

Main Products & Available Specifications

Spec. No. Grade Designation Available Standard
ASTM(ASME) B(SB)111
  1. C71640(CuNiFeMn66:30:2:2)
  2. C71500(CuNi70/30)
  3. C70600(CuNi90/10)
  4. C68700(Aluminum Brass)
  5. C44300(Admiralty Brass)
 Copper and Copper-Alloy Seamless
Condenser Tubes and Ferrule Stock
  1. ASTM/ASME B111 Standard
  2. ASTM/ASME B466 Standard
  3. BS2871
  4. JIS H3300
  5. AS 1569
  6. KS D5301
B(SB)466 C71500/C70600 Seamless Copper-Nickel Pipe and Tube -
Grade ASTM Tensile/Yield Strength(MPa) Min Remarks
Admiralty Brass Tube B111 C44300 310 / 105
  1. lower price and good corrosion resistance for sea water and dirty water
  2. Recommended to use below 200℃
  3. below 1.8m/sec, over than 1.8m/sec, C68700 recommended
  4. Stress relief heat treatment needed after bending
Aluminum Brass Tube B111 C68700 345 / 125
  1. Good resistance against sea water
  2. Stress relief heat treatment needed after bending
  3. Not to use Ammonia environment (SCC corrosion)
  4. Good resistance against Turbulence and Air Bubble Attack
  5. Recommended velocity of liquid 4~6ft/sec
CuNi90/10 B111 C70600 275 / 105
  1. Higher price than C44300 / C68700
  2. Excellent performance in Sea water
  3. Excellent Corrosion-Erosion
  4. Recommended velocity of liquid 7~9ft/sec
CuNi70/30 B111 C71500 360 / 125
  1. Similar resistance character with C70600 but higher cost
  2. Excellent performance in Sea water
  3. Excellent Corrosion-Erosion
  4. Recommended velocity of liquid 7~9ft/sec
DUSUNG METAL
DUSUNG METAL
DUSUNG METAL
DUSUNG METAL

AVAILABLE TEST

  1. Chemical composition / Mechanical property / 100% ECT / Hydrostatic test / Grain size / Mercurous nitrate test
  2. Hardness Test(BS2871)
  3. Amonia Vapor test(AS1569)
  4. Harmful film Test / Leco Test with Extra cost
