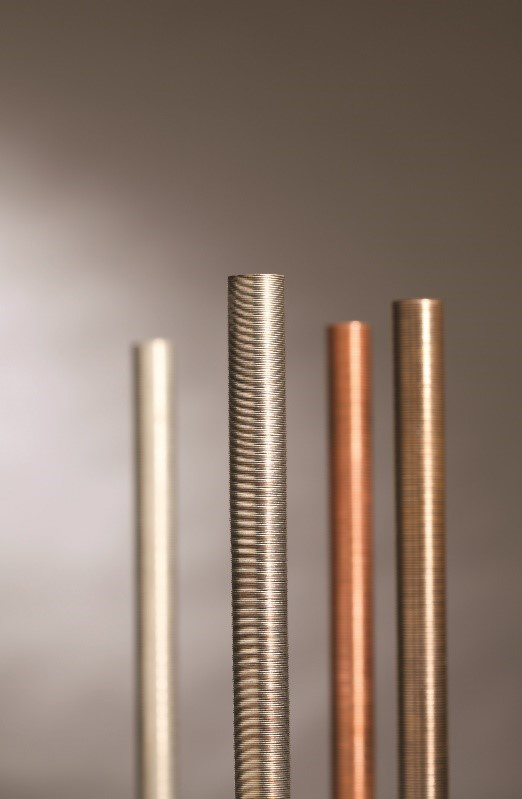

LOW FIN TUBES

LOW FIN TUBES

The extended surface by integral low finning process, it provides a better heat transfer efficiency and the client can install the equipment with smaller space and sizes.

As an expert with long-standings extensive experience, we are able to suggest most competitive condition to our customer's needs.

The materials are in available (Seamless tube type recommended)

  1. CS and Alloy steel tubes
  2. Stainless steel tubes
  3. Depulex and Super Duplex
  4. Copper alloy tubes
  5. Titanium tubes

All finned tubes are 100% Hydrostatic tested to detect the leakages ensure tubes are no damaged during finning. )

DUSUNG METAL
LOW FIN TUBES

APPLICATION

Heat exchanger, Condenser, Cooler and Evaporator for Oil & Gas Plant, Petrochemical Plant, Chemical plant, Offshore plant, Power Plant

ORDER INFORMATION

  1. Standard / Grace / Temper / Size / Wall type (Min or AVG) / Qty / Fin specification
  2. i.e.) ASTM B111 C70600 O61 Temper 19.05mmOD×2.11mmWT(MW)×6096mmL 1,000PCS
  3. FPI 26 / Fin thickness: 0.28mm / Fin height: 1.5mm / Wall thickness under fin: 1.473mm(Min) / Unfinned part at both end / Root Diameter:15.88mm / Finned OD: 18.95mm

ORDER INFORMATION

  1. General Fin height
  2. Copper / Copper alloy: 1.245mm~ 1.5mm
  3. Carbon steel: 0.89mm~1.45mm
  4. Stainless steel: 0.8mm
  5. Titanium: 0.5~0.7mmWall thickness under fin
  6. Plain tube 2.77mmFinning part 2.108mm(Min)
  7. Plain tube 2.413mmFinning part 1.89mm(Min)
  8. Plain tube 2.11mmFinning part 1.473mm(Min)
    Post work after Low finning
  9. C44300 / C68700 shall be stress relieve heat treated and re-straightened
    Pressure test (Hydrostatic test or Pneumatic test)
  10. For the stainless steel grade, Pressure test is recommended as the fins are easily damaged by disc rolling compare to other grade
    Working spare tubes
  11. Copper alloy / Carbon steel: 2~3%
  12. Stainless steel: 3~max 5%
DUSUNG METAL

STANDARD

Standards Material Application
ASTM A498 Carbon & Carbon alloy Heat exchanger for Oil refinery and Petrochemical plants
ASTM A1012 Stainless & Duplex alloy Condenser and Heat exchanger for Petrochemical & Power plants
ASTM/ASME B/SB359 Copper & Copper alloy Heat exchanger for Petrochemical plants, Condenser & Evaporator
ASTM B891 Titanium & Titanium alloy Condenser and Heat exchanger for Steam & Nuclear power plants
DUSUNG METAL

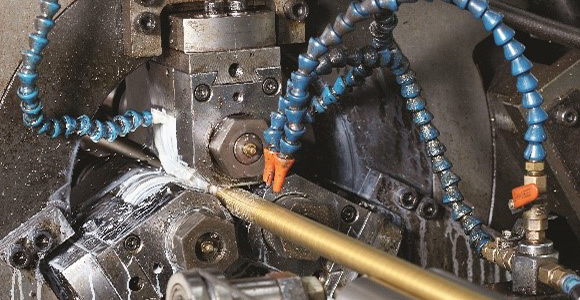

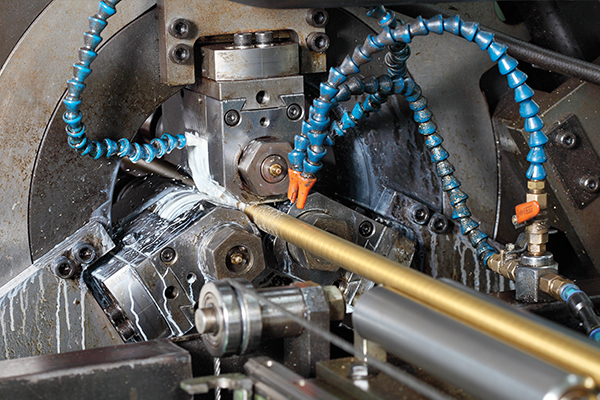

LOW FIN PROCESS

DUSUNG METAL

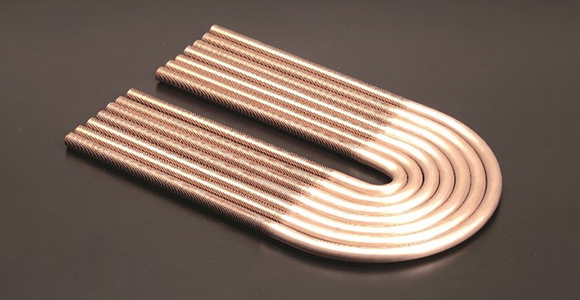

U BENT AFTER LOW FINNED
